Communication

Sending big files from one pc to another pc

The page describes how you can send big files from one Microsoft pc to another Microsoft pc.

The code is non-open-source and the program is free to use at this moment.

-

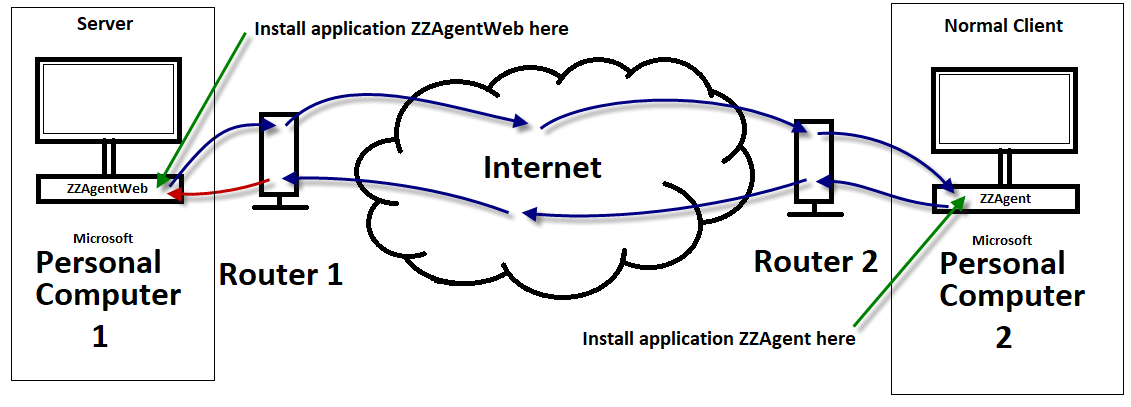

The red arrow in the pucture above is difficult. You need to give pc 1 a fixed ipaddress and you need to set the router 1 to send tcp http to pc 1.

How to set the fixed ip address for pc 1 (server), click the next button.

Set the ip address fixed on the server

-





Download 'ZZAgentWeb' on the pc that is going to be the server.

Click to download ZZAgentWeb.zip



Download 'ZZagent' on the normal client pc or laptop.

Click to download ZZAgent.zip



Copying the big files works from both sides. The big file will be cut in smaller file and these files wil be send over the internet. We will recollect the small files to form the big file afterwards.

On the server:





Click this button for an example of how to get on your router of your Internet Service Provider (ISP).

Router example



Click this button to find out what your SERVER ipaddress is going to be. The client (pc 2) needs to know to go to this ipaddress.

If you click this button on the browser on the pc 2, then you know the ipaddress for making pc 2 a server.

server ipaddress

-

-





_______________________________________________

On the server, pc 1 [Readme.txt]

1)Create a directory C:\ZZAgent

2)Place the Install_ZZAgentWeb.zip there.

3)Extract all file in C:\ZZAgent

4)Select the file "installZZAgentWeb.bat" and right-mouse click, run as Administrator.

5) Start the ZZAgentConfigurator.exe

6) Fill in the port , that is 80 .

7) Fill in Username

8) Fill in Password

9) Click button [Write File]

Done!

-

The logfiles can be found in C:\ZZAgent\ZZAgentLog.

-

_______________________________________________

-

-



_______________________________________________

On the client, pc 2 [Readme.txt]

How to install ZZAgent.exe?

1) Create the directory C:\ZZAgent\ and place the files there.

2) Run the [installZZAgent.bat] as Administrator (select the file right mouse button, run as Administator)

3) Start the ZZAgentConfigurator.exe

4) Click tab [ZZAgent]

5) Fill in Username

6) Fill in Password

7) Uncheck the "Automatic resolving" checkbox.

8) Fill in your friends ipaddress.

9) Click button [Write File]

Done!

-

The logfiles can be found in C:\ZZAgent\ZZAgentLog.

-

_______________________________________________

-

-



_______________________________________________

How do i send the big file?

On the pc 2, the client pc , place the big file in C:\ZZAgent\ZZAgentOutbox

The file should appear in C:\ZZAgent\ZZAgentClient\pc1\C\ZZAgent\ZZAgentOutbox on the pc1

in small pieces. Recollect them with program ZZAgentUnzipRecollect.exe

Place the program in the directory where the small pieces are and double click on ZZAgentUnzipRecollect.exe.

-

On the pc 1 , the server , place the big file in C:\ZZAgent\ZZAgentClient\pc1\C\ZZAgent\ZZAgentInbox

The file should appear in C:\ZZAgent\ZZAgentInbox on pc 2

in small pieces. Recollect them with program ZZAgentUnzipRecollect.exe

-

Problems should be in the logfiles in C:\ZZAgent\ZZAgentLog\

-

_______________________________________________

-

-



-

-

-

-
